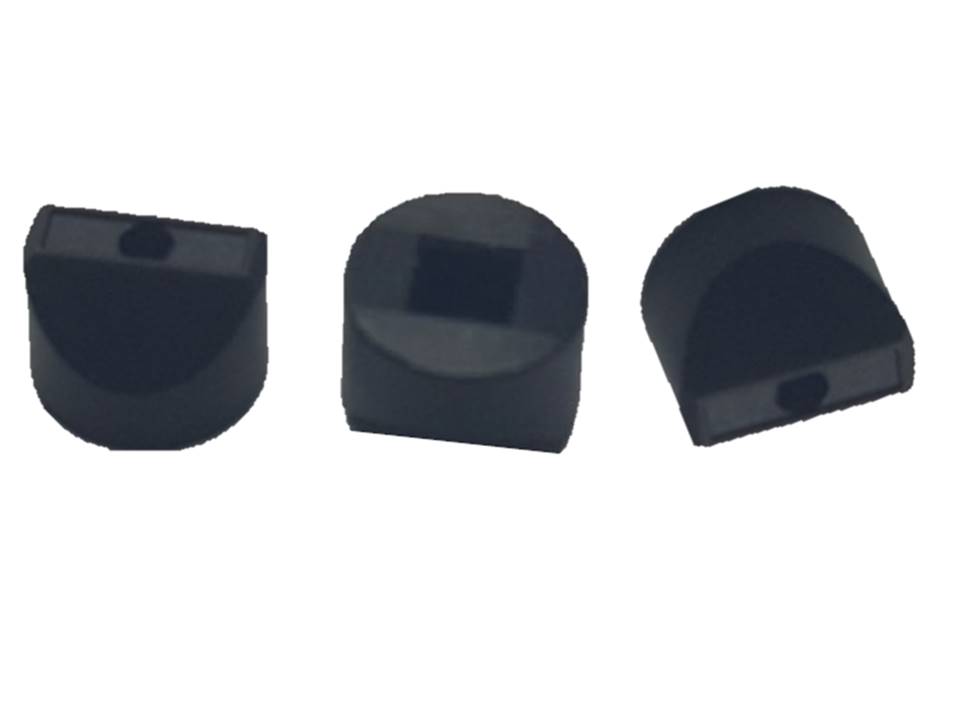

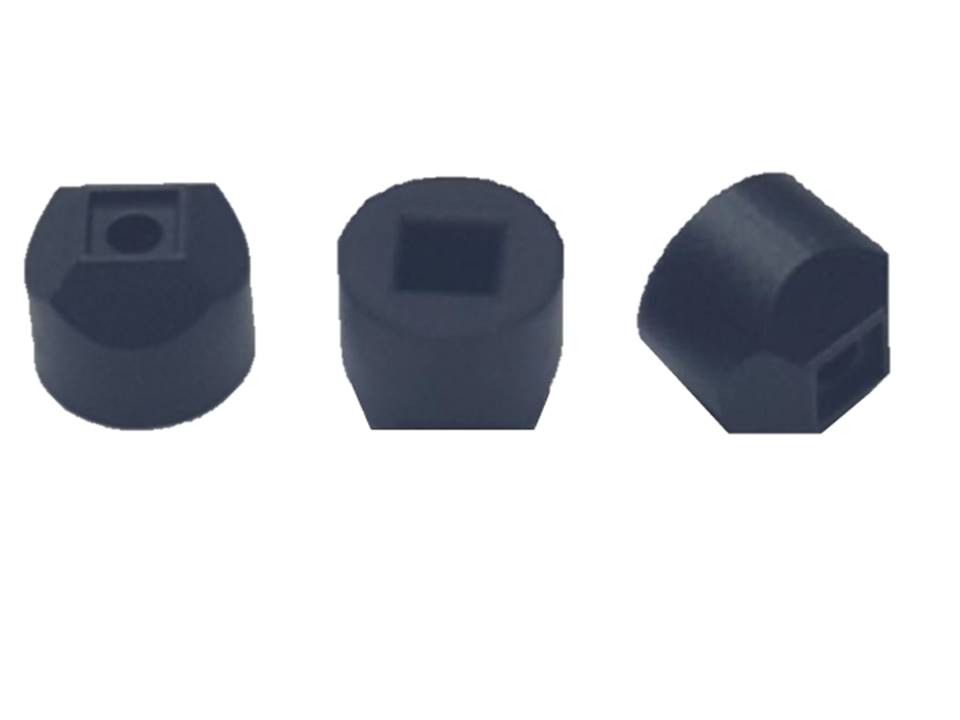

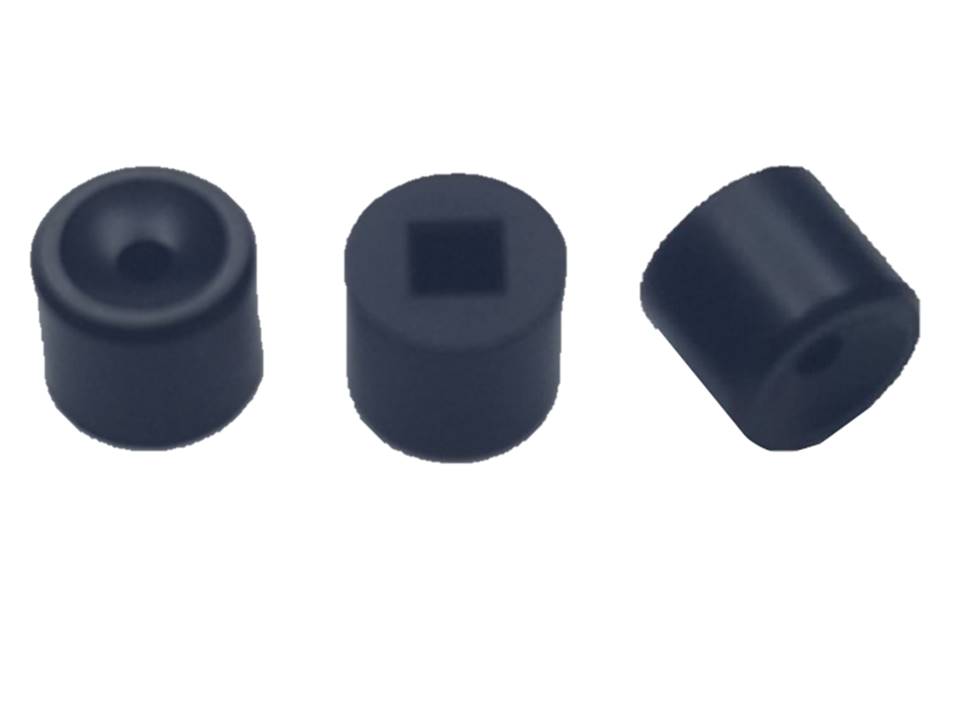

ESD Die Pick Up Tip Series 1
Category: ESD Die Pick Up Tip
| Part Number | A | B | C | D | E | F |
| RT-RS-1001 | 3.570 | 1.150 | 1.500 | 3.180 | 4.200 | 0.890 |
| RT-RS-1002 | 3.320 | 0.920 | 1.500 | 3.340 | 4.200 | 0.600 |
| RT-RS-1003 | 1.296 | 0.934 | 1.590 | 3.324 | 4.044 | 0.610 |
| RT-RS-1004 | 1.624 | 0.897 | 1.462 | 3.100 | 3.993 | 0.543 |
| RT-RS-1005 | 1.009 | 1.018 | 1.540 | 3.230 | 4.055 | 0.687 |
| RT-RS-1006 | 1.427 | 1.043 | 1.473 | 3.412 | 4.052 | 0.599 |
| RT-RS-1007 | 1.584 | 1.170 | 1.505 | 3.382 | 4.059 | 0.607 |
| RT-RS-1008 | 1.073 | 1.059 | 1.581 | 3.389 | 4.146 | 0.505 |
| RT-RS-1009 | 1.428 | 1.023 | 1.513 | 3.279 | 4.021 | 0.607 |
| RT-RS-1010 | 1.856 | 1.122 | 1.495 | 3.281 | 3.937 | 0.491 |
| RT-RS-1011 | 1.096 | 1.102 | 1.504 | 3.373 | 4.029 | 0.578 |
| RT-RS-1012 | 1.569 | 1.135 | 1.516 | 3.317 | 4.147 | 0.568 |
| RT-RS-1013 | 1.616 | 1.106 | 1.578 | 3.382 | 3.404 | 0.611 |
| RT-RS-1014 | 1.162 | 1.157 | 1.573 | 3.152 | 3.990 | 0.822 |
| RT-RS-1015 | 1.548 | 1.320 | 1.509 | 3.243 | 3.994 | 0.855 |
| RT-RS-1016 | 1.725 | 1.225 | 1.504 | 3.336 | 4.024 | 0.869 |
| RT-RS-1017 | 1.767 | 1.449 | 1.438 | 3.297 | 3.960 | 0.935 |
| RT-RS-1018 | 2.308 | 1.464 | 1.453 | 3.328 | 4.041 | 0.971 |
| RT-RS-1019 | 1.494 | 1.521 | 1.468 | 3.332 | 3.890 | 0.935 |
| RT-RS-1020 | 1.889 | 1.591 | 1.375 | 3.326 | 3.950 | 1.001 |
| RT-RS-1021 | 2.314 | 1.715 | 1.473 | 3.311 | 3.821 | 0.979 |
| RT-RS-1022 | 1.694 | 1.710 | 1.479 | 3.325 | 4.040 | 0.966 |
| RT-RS-1023 | 2.239 | 1.808 | 1.569 | 3.336 | 4.022 | 0.961 |
| RT-RS-1024 | 3.267 | 1.793 | 1.455 | 3.336 | 4.305 | 0.992 |
| RT-RS-1025 | 2.205 | 1.760 | 1.566 | 3.299 | 4.000 | 0.965 |
| RT-RS-1026 | 2.110 | 1.704 | 1.472 | 3.311 | 4.023 | 0.948 |
| RT-RS-1027 | 1.913 | 1.869 | 1.533 | 3.337 | 3.997 | 0.950 |
| RT-RS1028 | 3.146 | 1.847 | 1.430 | 3.284 | 4.044 | 1.006 |
| RT-RS-1029 | 2.255 | 2.277 | 1.507 | 3.250 | 4.100 | 0.967 |
| RT-RS-1030 | 2.310 | 2.317 | 1.480 | 3.365 | 4.079 | 0.983 |
| RT-RS-1031 | 2.563 | 2.563 | 1.555 | 3.293 | 3.912 | 0.993 |
| RT-RS-1032 | 3.223 | 2.709 | 1.511 | 3.303 | 4.553 | 0.990 |
| RT-RS-1033 | 2.857 | 2.805 | 1.477 | 3.315 | 4.359 | 1.001 |
| RT-RS-1034 | 3.272 | 2.789 | 1.520 | 3.364 | 4.544 | 0.926 |
| RT-RS-1035 | 3.369 | 2.829 | 1.481 | 3.393 | 4.574 | 0.945 |
| RT-RS-1036 | 3.788 | 3.775 | 1.424 | 3.386 | 5.599 | 1.026 |
| RT-RS-1037 | 4.237 | 4.218 | 1.475 | 3.375 | 6.363 | 0.991 |
| RT-RS-1038 | 4.471 | 4.484 | 1.451 | 3.369 | 6.563 | 1.006 |
| RT-RS-1039 | 4.718 | 4.710 | 1.507 | 3.393 | 6.937 | 0.981 |
| RT-RS-1040 | 1.420 | 1.420 | 1.500 | 3.200 | 4.000 | 0.970 |
| RT-RS-1041 | 0.940 | 0.940 | 1.500 | 3.300 | 4.100 | 0.480 |
| RT-RS-1042 | R2.52 | - | 1.500 | 3.300 | 4.200 | 1.000 |
| RT-RS-1043 | R3.73 | - | 1.500 | 3.400 | 4.100 | 1.000 |
