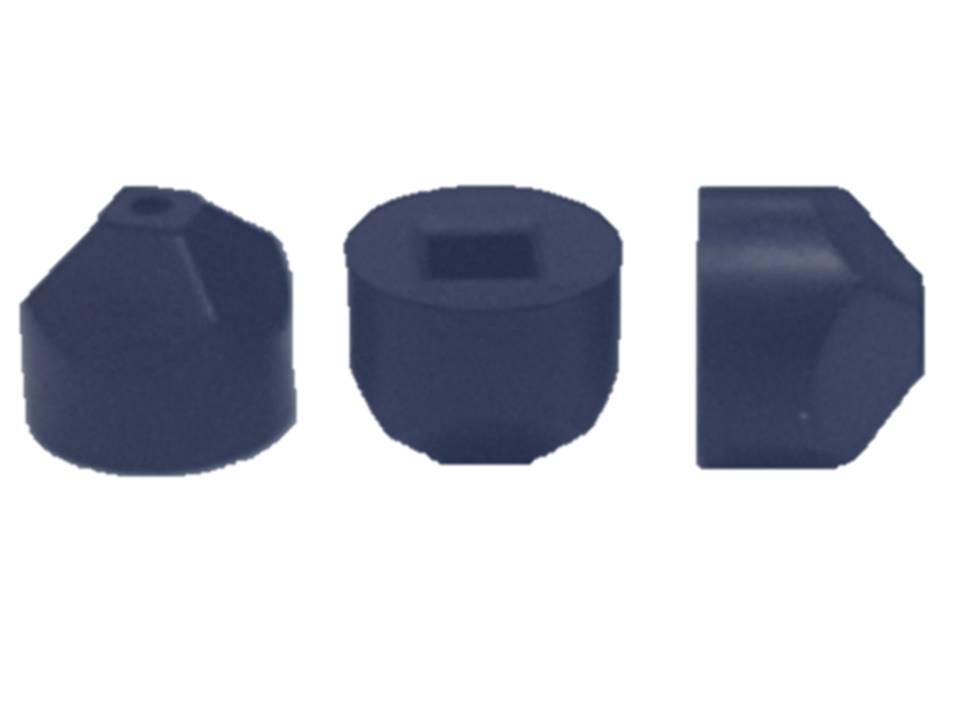

ESD Die Pick Up Tip Series 4
Category: ESD Die Pick Up Tip| Model | A | B | C | D | E | F | Drawing |
| RT-T1.00-B4-H3.30 | 4.00 | 1.50 | 3.30 | 0.20 | 1.00 | 0.10 |   |
| RT-T0.56-B4-H3.15 | 4.10 | 1.46 | 3.35 | 0.20 | 0.50 | 0.10 |    |
| RT-T1.25-B4-H3.20 | 4.10 | 1.50 | 3.40 | 0.60 | 1.27 | 0.10 |    |
| RT-1.30X0.55-B4-H3.15 | 4.00 | 1.50 | 3.30 | 0.67X0.22 | 1.30X0.52 | - |    |
| RT-T0.75-B4-H3.15 | 4.00 | 1.50 | 3.20 | 0.32 | 0.70 | - |    |
| RT-T2X3-B4-H3.5 | 4.00 | 1.55 | 3.50 | 1.00 | 3X2 | 0.15 |    |
